Pipe pipe endoscope, pipe detector, pipe detector, water pipe detector CR110-7DH2A
- Brand: Bestwill
- Product Code: CR110-7DH2A
- Availability: In Stock
-
$634.00
- Ex Tax: $634.00

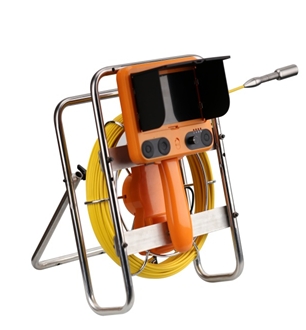

| product picture | product name | Pipe pipe endoscope, pipe detector, pipe detector, water pipe detector |
 |
model | CR110-7DH2A |
| Camera size | 120mm (L) x Φ 23mm (Diameter) | |
| turntable | 20m,diameter is 5 mm line (other lines need to be customized) | |
| indicator | A 7-inch LCD monitor | |
| control box | And HD DVR video recording | |
| lithium cell | A 4,500 MAH 18650 lithium battery | |
| carton | Single-mounted cartoon box: 43*16.5*40.5CM, Gross weight: 5.25KGS net weight: 4.75KGS 20 meter line |
|
| * CR110-7 DH 2 A series industrial endoscope is a new type of pushrod pipe internal image detection equipment, the product adopts industrial high resolution color camera system and portable intelligent control image recording processing terminal, equipped with high strength, flexible pushrod, in order to realize all kinds of pipes, hidden space, flammable, explosive, radiation and other places for real-time image detection, analysis and processing. * This product is very suitable for working in the pipeline and tank box, easy to check the internal cracks, corrosion, weld, blockage and other abnormal conditions. At present, it has been widely used in domestic and foreign municipal pipeline, gas and oil, electricity, telecommunications, field investigation, disaster search and rescue and other testing fields. |
||
| Details of product accessories: | ||
| turntable | Glass fiber pushrod cable; cable diameter Φ 5.0 mm; Cable length: 20 meters;other line length can be customized. Stainless steel portable cable frame cable; frame size: length 64x width 36x height 63 cm |
|

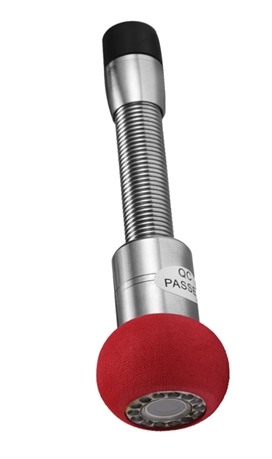

camera |
1. Camera size: 23mm x 120mm. 2. Camera material: high-strength stainless steel 304. 3. Camera lens material: tempered glass (sapphire). 4. Sensor: 1 / 3 inch CMOS. 5. Clarity: 960 line. 6. Camera perspective: 120°. 7. Fill light: 12 white lights. 8. White light lights can be adjusted. 9. Special gold contact interface. 10. Camera connection length: 20M. 11. Camera operating current: 100MA. 12. Camera voltage: DC 12V. 13. Waterproof grade: IP68. 14. Working environment: Use in the pipeline. 15. Operating temperature: -10°C-50°C. |
|
| The HD DVR control platform | * 7-inch LCD highlight HD screen * HD video recording system with built-in 8G SD card * video monitor 525 vidicon video out * 12V DVR current of 350mA * Storage media SD 1-32GB (optional) |
|
| control box | 12V DVR current at 350mA. Storage media SD card |
|
| Healizer (neutral) | * Material: stainless steel + sai steel. * Size: 2 inner diameter 3 mm, 108mm |
|
| Detailed technical parameters of the HD DVR control box | ||
| The 7-inch display technical parameters | ||
| Display size | A 7-inch digital screen LCD display | |
| Screen display proportions | 16:9 | |
| optimum resolution | 800 x 480 | |
| menu language | English, Chinese, etc. (multiple available) | |
| video in | AV1（1.0 Vp-p / 75Ω） | |
| Audio power amplifier (optional) | ||
| amplifier | Stereo class D audio power amplifier | |
| power | 3W*2 | |
| HD DVR | ||
| Support playback format | video frequency:AVI | |
| Music: MP3 | ||
| Photo: JPEG / JPG | ||
| Recording input (optional) | Built-in microphone | |
| video in | CAM1、CAM2_PT , VIDEO three-way composite video signal input | |
| Audio output (optional) | Stereo audio signal output (external mode) | |
| video out | Composite video signal output | |
| TV System | NTSC, PAL, 480P, 576P, 720P, 1080i, 1080P | |
| SD memory | 128GB（max) | |
| Video format | MPEG4 | |
| power supply | ||
| Power adapter | Input: AC 110~240V; output: DC 12V, 2A | |
| Lithium battery pack | A 4,500 MAH 18650 lithium battery | |
| whole machine power consumption | 10W（Max） | |
| Lithium battery charging time | For 6-7 hours at normal temperature, at 20 degrees Celsius | |
| Lithium battery working hours | About 4-5 hours at a room temperature of 20 degrees Celsius | |
| Other accessories | 1 charger, 1 set of center device, 1 instruction manual and 1 SD card | |
Download the manual:CR110-7DH2A
