Pipe pipe endoscope, pipe detector, pipe detector, water pipe detector CR110-7DVE
- Brand: Bestwill
- Product Code: CR110-7DVE
- Availability: In Stock
-
$424.00
- Ex Tax: $424.00

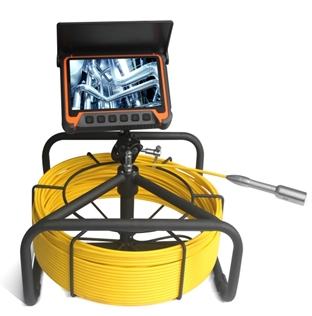

| product picture | product name | Pipe pipe endoscope, pipe detector, pipe detector, water pipe detector |
 |
model | CR110-7DVE |
| Camera size | 23mm x 108mm, head: 34mm | |
| wire coil | 290MM (diameter) X70 (height), diameter: 4.9MM | |
| indicator | 7 " IPS display | |
| DVR | Built-in DVR video recording | |
| Lithium battery control box | 12V 4500MAH | |
| carton | 20m /1 set of cartoon box: 430 * 205 * 390mm,net weight: 5 KG | |
| CR110-7 DVE series industrial endoscope is a new type of pushrod pipe internal image detection equipment, the product adopts industrial high resolution color camera system and portable intelligent control image recording processing terminal, equipped with high strength, flexible pushrod, in order to realize all kinds of pipes, hidden space, flammable, explosive, radiation and other places for real-time image detection, analysis and processing. This product is very suitable for working in the pipeline and tank box, easy to check the internal cracks, corrosion, weld, blockage and other abnormal conditions. At present, it has been widely used in domestic and foreign municipal pipeline, gas and oil, electricity, telecommunications, field investigation, disaster search and rescue and other testing fields. | ||
| Camera technical parameters | ||
| Camera size | 23mm x 108mm, head: 34mm | |
| Camera material | High-strength stainless steel 304 | |
| camera lens material | Sapphire glass | |
| sensor | 1 / 3 inch CMOS | |
| definition | 1000TVL | |
| Camera view | 120° | |
| Fill light | 12 white lights | |
| White light adjustment | Adjustable | |
| connect | Special gold contact interface | |
| The camera cable length | 20/30/40 meters (optional, more than 50 meters need to be customized) | |
| Camera operating current | 100mAh | |
| Camera voltage | DC 12V | |
| Waterproof rating | IP68 | |
| Operating environment | In-pipe use; Operating temperature: -20°C-60°C | |
| Display specifications | ||
| Display size | 7" IPS display | |
| Screen display ratio | 16:9 | |
| Best resolution | 1024(H) X 600(V) | |
| Menu language | OSD Language: Chinese, English, Japanese, German, French, Spanish, Portuguese, Italian, Russian and other languages are available | |
| Video input | CVBS | |
| Reels | ||
| Reel size | 290MM (DIAMETER) X 70 (HEIGHT) | |
| Line Material | Fiberglass wire | |
| Cord length | 20m / 30m / 40m / 50m (optional, more than 50m needs to be customized) | |
| Diameter of the fiberglass wire | 4.9MM | |
| Fiberglass thread color | Yellow/blue | |
| DVR | ||
| Playback formats are supported | Video: Mpeg2 Mpeg4(Divx,AVI,Xvid) Resolution: 720*576 | |
| Photo: JPEG/JPG resolution 720*576 | ||
| SD storage | SD card (up to 32G) | |
| counter | ||
| tolerance | 0.5m | |
| Unit Conversion | support | |
| Power supply | ||
| Power adapter | Input: AC 100~240V, 50/60Hz; Output: DC 5V, 2A | |
| Lithium battery packs | 4500MAH, 6000 POLYMER | |
| Lithium battery charging time | 6-8 hours at room temperature 20 degrees Celsius | |
| Lithium battery working time | At room temperature of 20 degrees Celsius, about 5 hours | |

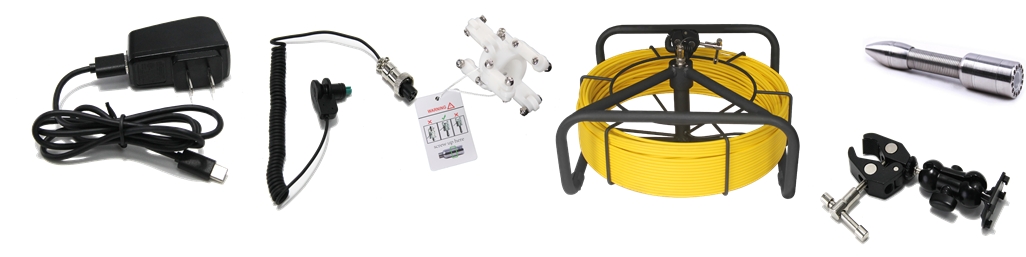

| Product Accessories Details | 1. Test line*1 2. HD waterproof camera *1 3. Reel with wire *1 4. Bracket*1 5. Toolkit*1 6. Centralizer (centerer)*1 7. Charger *1 8. Cable*1 9. Instruction manual *1 |
|
| More details | ||
 |
||
Download manual:CR110-7DVE-MANUAL
