Rack mount power supply 1U24CH
- Brand: Yingqi
- Product Code: Rack mount power supply 1U DCXVYW24CH-1U
- Availability: In Stock
-
$114.00
- Ex Tax: $114.00
| Rack mount power supply 1U24CH | |
| Model | DCXVYW24CH-1U(X means the output DC voltage,Y means the power) |
| Input Voltage | AC110/220V(optional) |
| Output Voltage | DC5/12/15/24/48V(optional) |
| Total power | 150/300/400/500/600/700/800W(optional) |
| output channel | 24 outputs (single 0-3A auto-adaptive) |
| Overload protection | 105%~125% constant current limit |
| Overvoltage Protection | 120%~145% off O/P voltage, reboot to recover |
| Overvoltage Protection | >110% |
| Set the rise wait time | 1500 ms, 60 ms, 10 ms at full load, and 230VAC |
| Operating temperature | -40~+70°C (refers to the output degradation curve) |

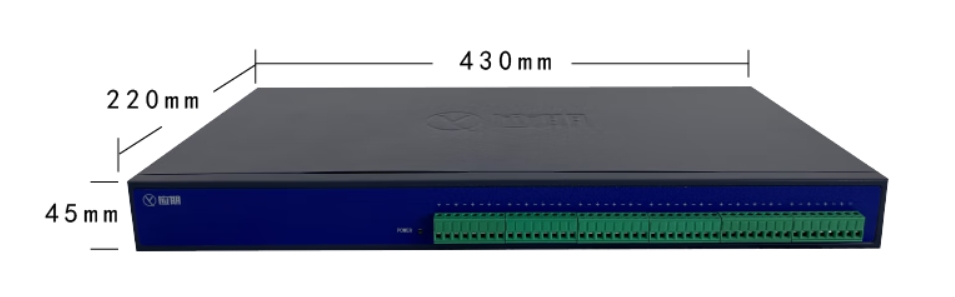

| Dimension | 430*220*45mm |
| Feature | |
| 1:Save space in the computer room and standardize the laying of power supply cables, in real time check the power supply working status. 2:Rack power wiring specification, maintenance is very convenient. 3:Reject decentralized power supply, adopt centralized management, and mention high installation efficiency and reduced maintenance costs. 4:Avoid exposing the power transformer to the outdoors and harsh environments sun! Extended service life. 5:The power supply is the heart of the equipment, and the rack-mounted centralized power supply is high-quality the quality of the performance process to solve the worries of the project,escort the project. 6:The products are widely used in banks, prisons, airports, subways, electricity weak monitoring, access control, lighting, fire protection, etc,centralized power supply project. 7:The input voltage is AC110/AC220V, which is used worldwide. 8:Overload protection, turn off the O/P voltage after 5 seconds, and reboot to resume. |
|
| Patented appearance, more convenient for connection. | |
| Industrial power module, the product is more stable |  |
| 3D drawing of the product |  |
| Plug-in terminals | Plug-in terminals, more convenient wiring and installation. |
| QR code instruction manual | The QR code manual is simple and easy to operate |

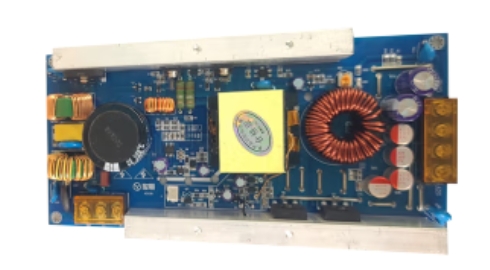

| SMD process, double-sided circuit board. | Using 1.2 double-sided panel materials and SMD technology, bidding farewell to the dense and scattered layout of electronic components in the past, the circuit board adopts professional SMT packaging, so that the components can work more stably. |

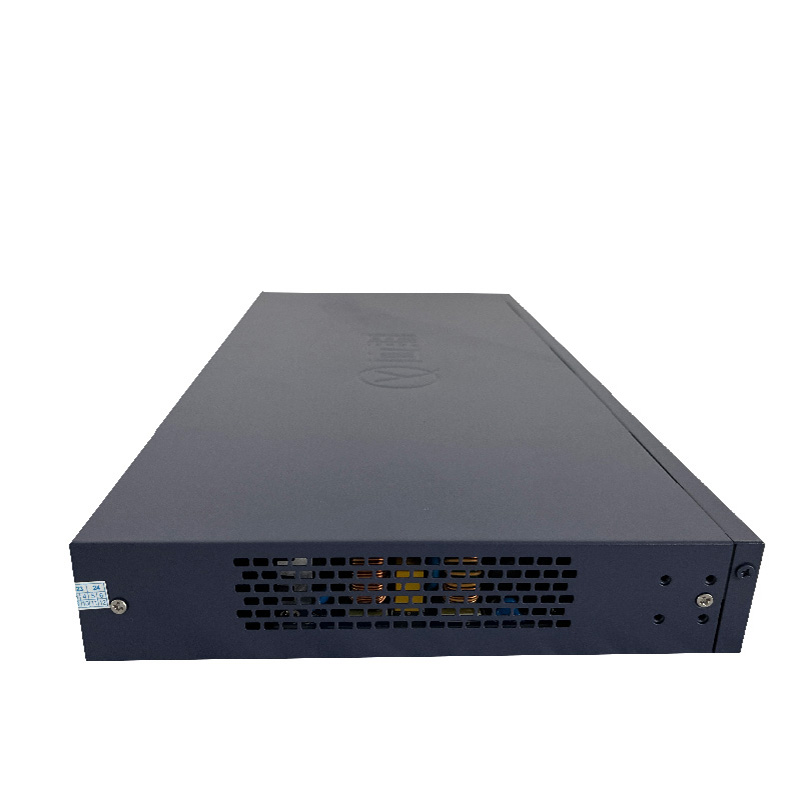

| Side heat dissipation. holesThe side of the case adopts round holes for heat dissipation, which has a longer service life |  |
